Shortest-paths on weighted graphs

On a road map, a road connecting two towns is typically labeled with its distance. We can model a road network as a directed graph whose edges are labeled with real numbers. These numbers represent the distance (or other cost metric, such as travel time) between two vertices. These labels may be called weights, costs, or distances, depending on the application. Given such a graph, a typical problem is to find the total length of the shortest path between two specified vertices. This is not a trivial problem, because the shortest path may not be along the edge (if any) connecting two vertices, but rather may be along a path involving one or more intermediate vertices.

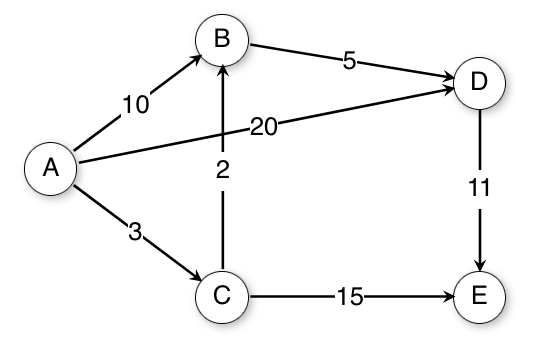

For example, in Figure 13.12, the cost of the path from $A$ to $B$ to $D$ is 15. The cost of the edge directly from $A$ to $D$ is 20. The cost of the path from $A$ to $C$ to $B$ to $D$ is 10. Thus, the shortest path from $A$ to $D$ is 10 (rather than along the edge connecting $A$ to $D$). We use the notation $\mathbf{d}(A, D) = 10$ to indicate that the shortest distance from $A$ to $D$ is 10. In the figure, there is no path from $E$ to $B$, so we set $\mathbf{d}(E, B) = \infty$. We define $\mathbf{w}(A, D) = 20$ to be the weight of edge $(A, D)$, that is, the weight of the direct connection from $A$ to $D$. Because there is no edge from $E$ to $B$, $\mathbf{w}(E, B) = \infty$. Note that $\mathbf{w}(D, A) = \infty$ because the graph is directed. We assume that all weights are positive.
