8.6.1 Definitions and terminology

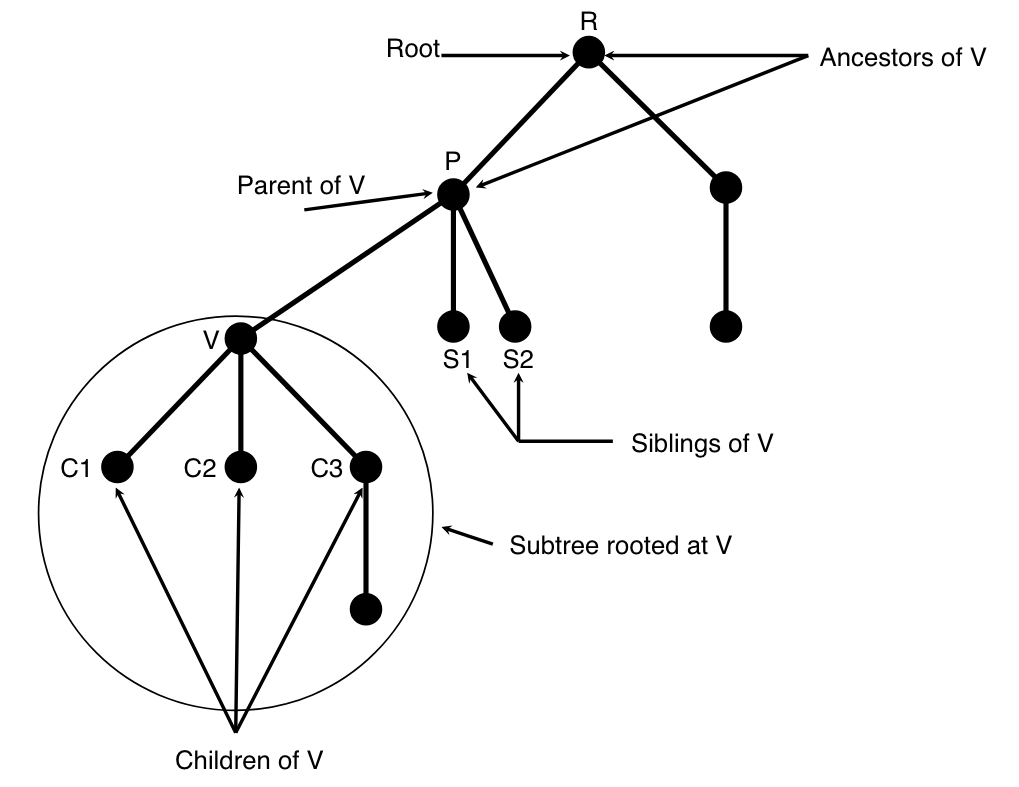

A tree $\mathbf{T}$ is a finite set of one or more nodes such that there is one designated node $R$, called the root of $\mathbf{T}$. If the set $(\mathbf{T} -\{R\})$ is not empty, these nodes are partitioned into $n > 0$ disjoint sets $\mathbf{T}_0$, $\mathbf{T}_1$, ..., $\mathbf{T}_{n-1}$, each of which is a tree, and whose roots $R_1, R_2, ..., R_n$, respectively, are children of $R$. The subsets $\mathbf{T}_i (0 \leq i < n)$ are said to be subtrees of $\mathbf{T}$. These subtrees are ordered in that $\mathbf{T}_i$ is said to come before $\mathbf{T}_j$ if $i < j$. By convention, the subtrees are arranged from left to right with subtree $\mathbf{T}_0$ called the leftmost child of $R$. A node’s out degree is the number of children for that node. A forest is a collection of one or more trees. Figure 8.6 presents further tree notation generalised from the notation for binary trees.

Each node in a tree has precisely one parent, except for the root, which has no parent. From this observation, it immediately follows that a tree with $n$ nodes must have $n-1$ edges because each node, aside from the root, has one edge connecting that node to its parent.

8.6.2 ADT for general trees

Before discussing general tree implementations, we should first make precise what operations such implementations must support. Any implementation must be able to initialise a tree. Given a tree, we need access to the root of that tree. There must be some way to access the children of a node. In the case of binary tree nodes, this was done by providing instance variables for the left and right child pointers. Unfortunately, because we do not know in advance how many children a given node will have in the general tree, we cannot give explicit functions to access each child. An alternative must be found that works for an unknown number of children.

One choice would be to provide a function that takes as its parameter the index for the desired child. That combined with a function that returns the number of children for a given node would support the ability to access any node or process all children of a node. Unfortunately, this view of access tends to bias the choice for node implementations in favour of an array-based approach, because these functions favour random access to a list of children.

An alternative is to provide access to a List of the children pointers. This list can be an array-based list or a linked list or even a dynamic function generating the children on demand. The only thing we will assume is that it follows the List ADT, as described in Section 6.10.

// General tree nodes
datatype GTNode of T:
    elem: T                   // This is the value, just as for binary nodes
    children: List of GTNode  // All children of the node

8.6.3 Traversing a general tree

There are three traditional tree traversals for binary trees: preorder, postorder, and inorder (see Section 8.4). For general trees, preorder and postorder traversals are defined with meanings similar to their binary tree counterparts. Preorder traversal of a general tree first visits the root of the tree, then performs a preorder traversal of each subtree from left to right. A postorder traversal of a general tree performs a postorder traversal of the root’s subtrees from left to right, then visits the root. Inorder traversal does not have a natural definition for the general tree, because there is no particular number of children for an internal node. An arbitrary definition – such as visit the leftmost subtree in inorder, then the root, then visit the remaining subtrees in inorder – can be invented. However, inorder traversals are generally not useful with general trees.

To perform a preorder traversal, it is necessary to visit each of the children for a given node (say $R$) from left to right. This is accomplished by starting at R’s leftmost child (call it $T$). From $T$, we can move to $T$’s right sibling, and then to that node’s right sibling, and so on.

Using the General Tree class shown above, here are implementations to process the nodes of a general tree in preorder and in postorder. The code is very simple, but this is because we defer all the complexity to the underlying List implementation of the children.

function preorder(node):
    process(node)
    for each child in node.children:
        preorder(child)

function postorder(node):
    for each child in node.children:
        postorder(child)
    process(node)

8.6.4 Sequential tree representations

Next we consider a fundamentally different approach to implementing trees. The goal is to store a series of node values with the minimum information needed to reconstruct the tree structure.
