13.5 Minimum spanning trees, MST

The minimum spanning tree (MST) problem takes as input a connected, undirected graph $\mathbf{G}$ , where each edge has a distance or weight measure attached. The MST is also called minimal-cost spanning tree (MCST).

The MST is the graph containing the vertices of $\mathbf{G}$ along with the subset of $\mathbf{G}$ ’s edges that (1) has minimum total cost as measured by summing the values for all of the edges in the subset, and (2) keeps the vertices connected. Applications where a solution to this problem is useful include soldering the shortest set of wires needed to connect a set of terminals on a circuit board, and connecting a set of cities by telephone lines in such a way as to require the least amount of cable.

The MST contains no cycles. If a proposed MST did have a cycle, a cheaper MST could be had by removing any one of the edges in the cycle. Thus, the MST is a free tree with $|\mathbf{V}| - 1$ edges. The name “minimum-cost spanning tree” comes from the fact that the required set of edges forms a tree, it spans the vertices (i.e., it connects them together), and it has minimum cost. Figure 13.10 shows the MST for an example graph.

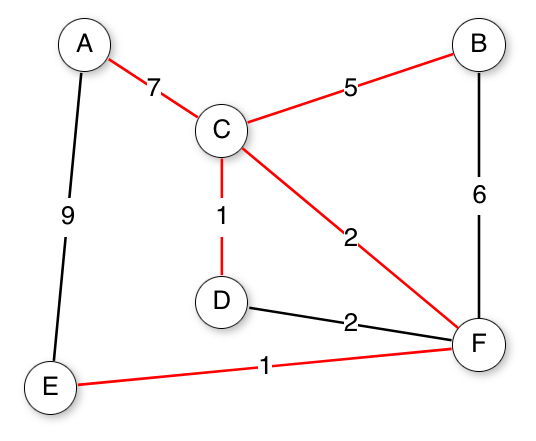

Figure 13.10: A graph and its MST. All edges appear in the original graph. Those edges drawn with heavy lines indicate the subset making up the MST. Note that edge (C, F) could be replaced with edge (D, F) to form a different MST with equal cost. — Figure 13.10: A graph and its MST. All edges appear in the original graph. Those edges drawn with heavy lines indicate the subset making up the MST. Note that edge $(C, F)$ could be replaced with edge $(D, F)$ to form a different MST with equal cost.
